Synthetic micanite - Rigid plates

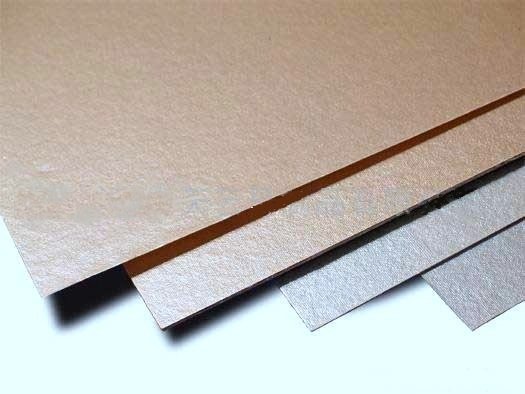

Micanite - rigid plate
Rigid micanite plate is an excellent material for electrical insulation in high temperature. They are made of synthetic type of mica (90%) in combination with organic silicon resin (10%).
These plates are certified by:
- UL94V-0
- E231452
- environmental certificate TUV Z05811263
- certificate SGS-RoHS - No. SH6148278/CHEM
- certificate for contact with food FDA - No. RJSSZ060586FDA
We offer synthetic mica (phluorphlogopite) plates:
- color white, continuous operating temperature: 900℃, intermittent operating temperature: 1100 ℃.

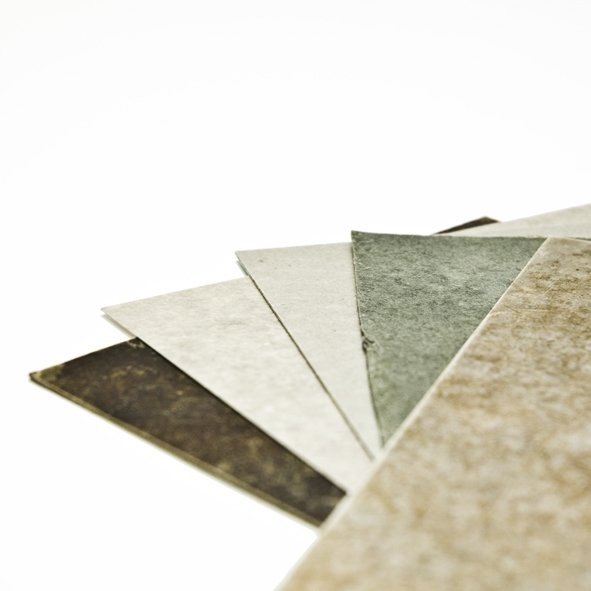

For less demanding working conditions, natural mica plates are also available:
- muscovite rigid plates, color: silver, continuous operating temperature: 500 ℃, intermittent operating temperature: 800 ℃,
- phlogopite rigid plates, color: amber, continuous operating temperature: 750 ℃, intermittent operating temperature: 1000 ℃,
Synthetic mica has higher temperature resistance than muscovite and phlogopite mica. Synthetic mica is extensively applied on products with strict requirement of high dielectrical strength and high temperature resistance.
We offer a rigid micanite plate R-5660-H series. Plates of this series are mainly used in household appliances (ovens, toasters, microwave ovens, fan heaters, hair dryers, irons, etc.) as supports for heating elements or insulating liner.
Relative to general insulation material, the prominent advantages of the flexible mica plate are:
- excellent insulating properties at high temperature: At 500-1000℃ operating ambient temperature, the voltage breakdown resistance is 15KV/mm;
- good tensile property: It can be processed into a variety of shapes without layer separation;
- excellent environmental protection performance: The product contains no asbestos, and has less smoke and odors, even smokeless and odorless when heating;
- excellent acid and alkali resistance, and oil resistance.
Storage:
minimum 18-24 months, if stored at ambient temperature of 20ºC ± 5ºC in dry condition.
Specifications:
- typical sizes of plates: 1000 × 1000mm
- thickness: 0.1mm, 0.15mm, 0.2mm .. 100mm
Note: The product less than 2.0 mm thickness can be formed by stamping. The products larger than 2.0mm shall be processed by turning, milling, drilling and other processes.
Parameters of rigid micanite plates
| Item | Unit | R-5660-H1 | R-5660-H2 | R-5660-H3 | Testing procedure |
|---|---|---|---|---|---|
| Mica paper | Muscovite | Synthetic | Phlogopite | ||
| Mica content | % | ca. 90 | ca. 90 | ca. 90 | IEC 371-2 |
| Bond content | % | ca. 10 | ca. 10 | ca. 10 | IEC 371-2 |
| Density | g/cm3 | 1,6 - 2,45 | 2,2 - 2,3 | 1,6 - 2,45 | IEC 371-2 |
| Heat resistant | |||||
| - continuous services | ℃ | 500 | 900 | 750 | |
| - intermittent services | ℃ | 800 | 1100 | 1000 | |
| Heat loss at 500 ℃ | % | <1 | <1 | <1 | IEC 371-2 |
| Heat loss at 700 ℃ | % | <2 | <2 | IEC 371-2 | |
| Water absorption | % | <1 | < 1,5 | <1 | GB/T5019 |
| Dielectric strength | kV/mm | >20 | > 25 | >15 | IEC 243 |
| Insulation resistance at 23 ℃ | Ω.cm | 1017 | 1017 | IEC93 | |
| Insulation resistance at 500 ℃ | Ω.cm | 1012 | 1012 | IEC93 | |
| Flame resistance | 90V0 | 90V0 | UL94 | ||
| Test for flammability | s | <4 | <4 | ||
| Compressive strength at 20°C | MPa | 330 | ISO 604 | ||
| Compressive strength at 200°C | MPa | 240 | ISO 604 | ||
| Tensile strength | MPa | 140 | 110 | ISO 527 | |
| Flexural strength | MPa | 180 | 170 | ISO 178 | |

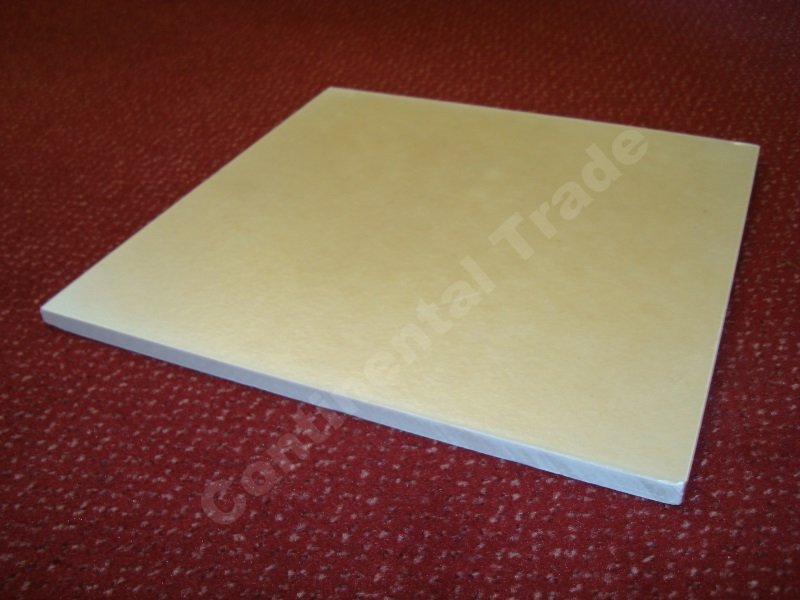

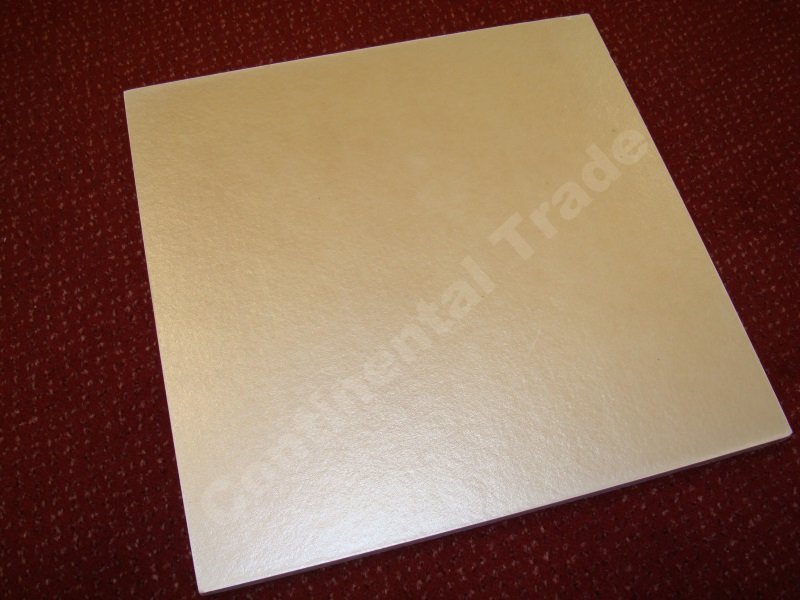

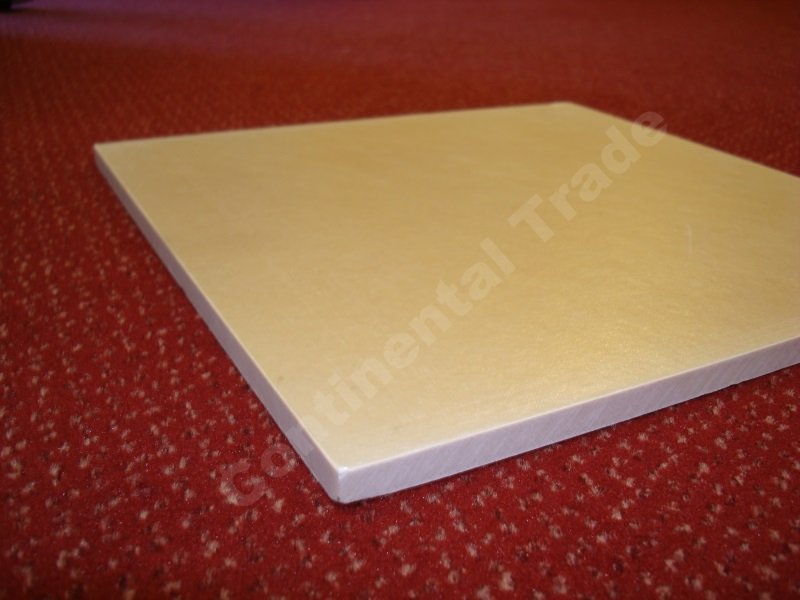

Rigid micanite plates based on sythetic mica.
