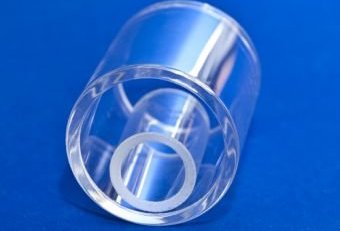

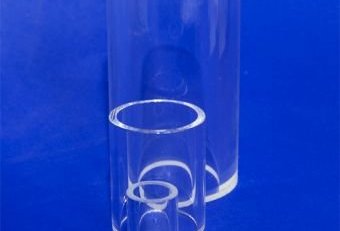

Gauge glass tubes
Standard size range
The standard sizes of gauge glass tubes are given below. These tubes are used in tubular level gauges.
Choose the right outer diameter (OD), the required length (L) and the number of pieces, and then place your order by e-mail or contact form.
The tubes are made of borosilicate glass 3.3.
| Outer Diameter OD |
Wall thickness WT |
|---|---|
| [mm] | [mm] |
| 9,5 | 1,50 |
| 11,5 | 1,50 |
| 12,5 | 1,50 |
| 13,5 | 1,75 |
| 14,5 | 2,25 |
| 15,5 | 2,25 |
| 18,5 | 2,25 |
| 19,5 | 2,25 |
| 20,5 | 2,50 |
| 24,5 | 2,50 |
| 29,5 | 2,75 |
| 34,5 | 2,75 |
| 39,5 | 3,00 |
NOTE! The above mentioned borosilicate gauge glass tubes are sold in standard lengths of 2000 mm, however, on customer request we can prepare a different length.
If you can't find correct size - contact us.
While every attempt has been made to verify the source of the information, no responsibility is accepted for accuracy of data.
