  1. Home  /
  2. Our offer  /
  3. Insulators  /
  4. Bushing Insulators  /
  5. Resin Bushing Insulators  /
  6. Series 3

Our offer

Our offer
Add to clipboard

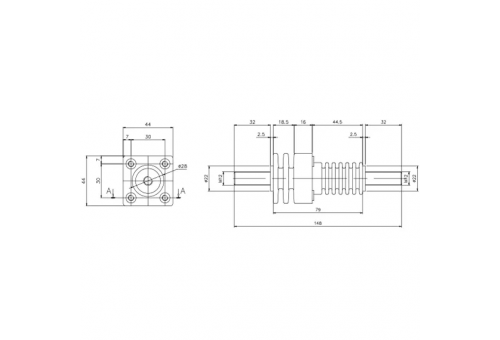

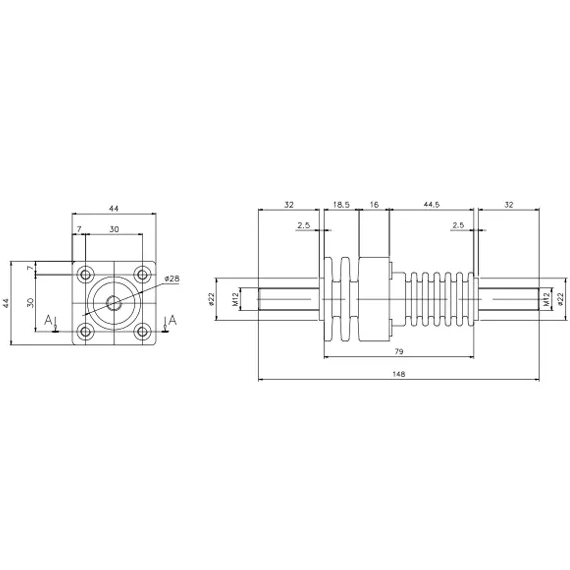

Zrzut ekranu (101) - Continental Trade

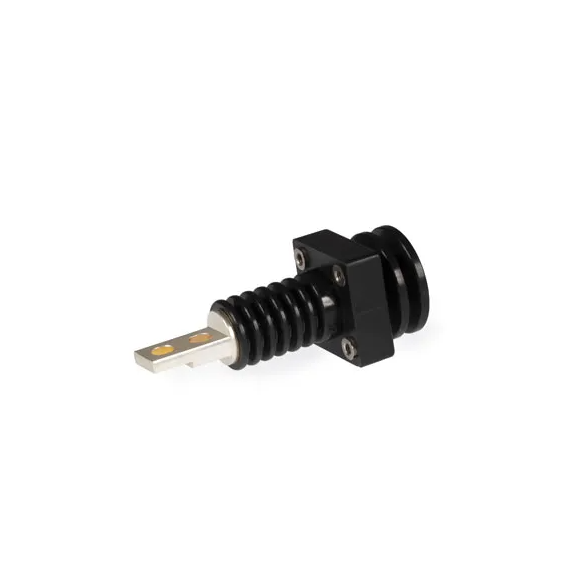

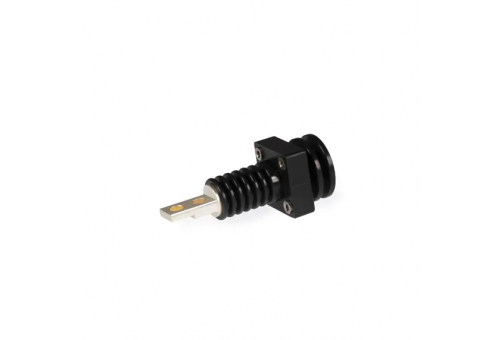

Series 3

Inquire about a product
Product description Technical data Video

products

code description material finishing indoor/outdoor current [A] weight files
312108303 Isol.pass.3FF-M10/153 E-Cu Copper M-M Outdoor 400 320 download
312113303 Isol.pass.3FF-M12/134 E-Cu Copper M-M Outdoor 400 290 download
312101601 Isol.pass.3FF-M12/148 B-Cu Copper M-M Indoor 400 291 download
312101601s Isol.pass.3FF-M12/148 B-Cu Copper M-M Indoor 400 291 download
312101603 Isol.pass.3FF-M12/148 E-Cu Copper M-M Outdoor 400 292 download
312101603s Isol.pass.3FF-M12/148 E-Cu Copper M-M Outdoor 400 292 download
312104703 Isol.pass.3HH-M8/084 E-Cu Copper F-F Outdoor 400 240 download
312101060 Isol.pass.3HH-M8/084 E-Ot Brass F-F Outdoor 250 240 download
312107913 Isol.pass.3HS-M10-9/111 E-Cu Copper Female-Flat terminal Outdoor 400 280 download
312107203 Isol.pass.3HS-M8-7/121 E-Cu Copper Female-Flat terminal Outdoor 400 290 download
312124803 Isol.pass.3HS-M8-9/104 E-Cu Copper Female-Flat terminal Outdoor 400 250 download
312107903 Isol.pass.3HS-M8-9/111 E-Cu Copper Female-Flat terminal Outdoor 400 280 download
312107913 Isol.pass.3SH-M10-9/111 E-Cu Copper Flat terminal-Female Outdoor 400 280 download
312910006 Isol.pass.3SS-9/138 E-Cu Copper Flat terminal-Flat terminal Outdoor 400 220 download
max current [A] breakdown voltage [kV] hexagonal[mm] internal creepage distance [mm] internal air distance [mm] external creepage distance [mm] external air distance [mm] Maximum torque on insert threads [Nm]
400 14 30x30 95 46 91 45 60
return
Previous product Next product
Contact form
Series 2
Series 2
Series 2
code description material finishing indoor/outdoor current [A] weight files 312101701 Isol.pass.2FF-M12/130 B-Cu Copper M-M Indoor 400 263 download 312101701s Isol.pass.2FF-M12/130 B-Cu Copper M-M Indoor 400 263 download 312101703 Isol.pass.2FF-M12/130 E-Cu Copper M-M Outdoor 400 263 download 312101703s Isol.pass.2FF-M12/130 E-Cu Copper M-M Outdoor 400  263 download 312107803 Isol.pass.2FH-M12/117 E-Cu Copper M-F Outdoor 400 220 download 312103203 Isol.pass.2FH-M8/086 E-Cu Copper M-F Outdoor 400 220 download 312110003 Isol.pass.2HH-M12/91 E-Cu Copper F-F Outdoor 400 286 download 312012910 Isol.pass.2HH-M8/066 E-Cu Copper F-F Outdoor 400 200 download 312012900 Isol.pass.2HH-M8/066 E-Ot Brass F-F Outdoor 250 200 download 312012900M Isol.pass.2HH-M8/066 E-Ot Brass F-F Outdoor 250 200 download 312123300 Isol.pass.2HS-M8-9/93 E-Cu Copper Female-Flat terminal Outdoor 400 220 download 312125700 Isol.pass.2SH-9-M8/113 E-Cu Copper Flat terminal-Female  Outdoor 400 210  download max current [A] breakdown voltage [[kV] hexagonal[mm] internal creepage distance [mm] internal air distance [mm] external creepage distance [mm] external air distance [mm] Maximum torque on insert threads [Nm] 400 11 30x30 53 39 91 45 60
Series 3A
Series 3A
Series 3A
code description material finishing indoor/outdoor current [A] weight files 312123803 Isol.pass.3AHS-M8-7/140 E-Cu Copper Female-Flat terminal Outdoor 400 290 download 312124703 Isol.pass.3AHS-M8-9/123 E-Cu Copper Female-Flat terminal Outdoor 400 290 download max current [A] breakdown voltage [kV] hexagonal[mm] internal creepage distance [mm] internal air distance [mm] external creepage distance [mm] external air distance [mm] Maximum torque on insert threads [Nm] 400 14 30x30 95 46 117 56 60
