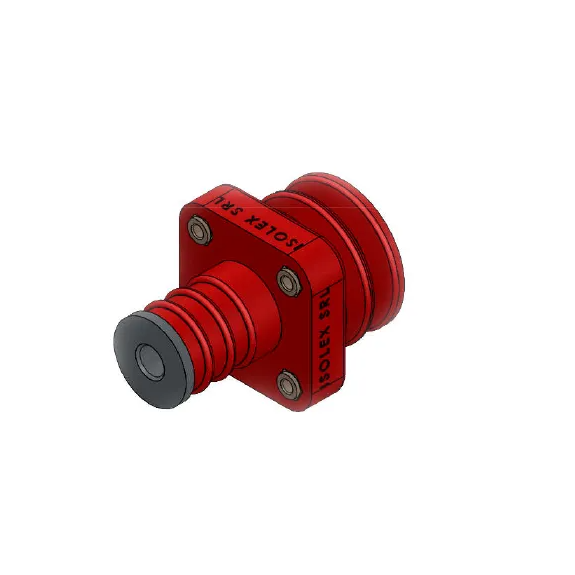

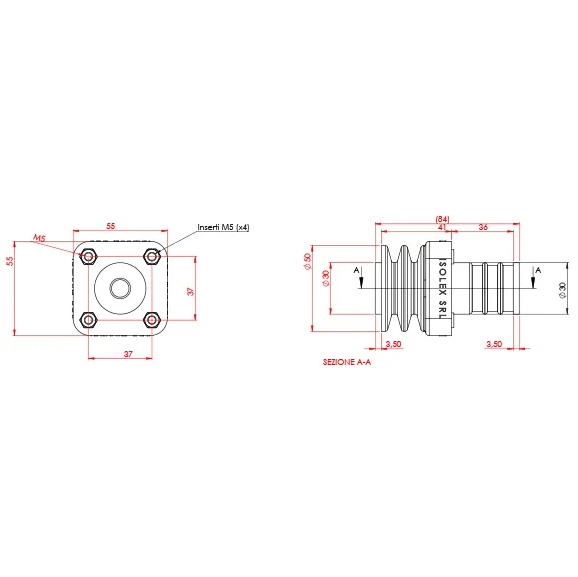

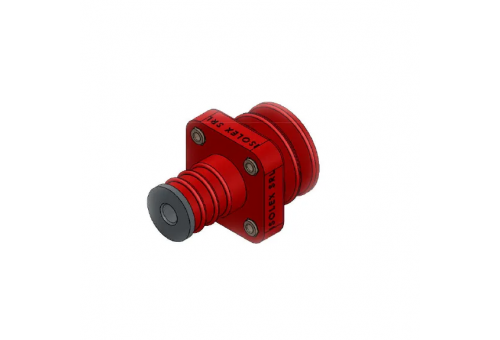

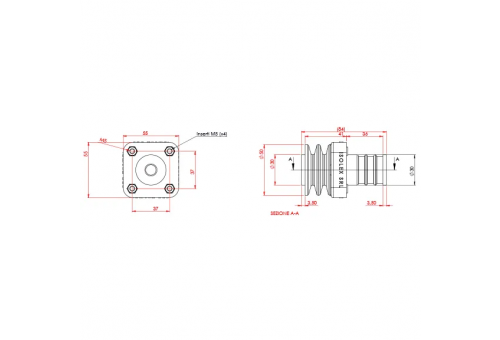

Series 3B

Inquire about a product

Product description Technical data Video

products

code	description	material	finishing	indoor/outdoor	current [A]	weight	files
312127710	Isol.pass.3BHH-M 8/084 E-Cu	Copper	F-F	Outdoor	400	355	download
312127720	Isol.pass.3BHH-M10/084 E-Cu	Copper	F-F	Outdoor	400	355	download
312127730	Isol.pass.3BHH-M12/084 E-Cu	Copper	F-F	Outdoor	400	355	download

max current [A]	breakdown voltage [kV]	hexagonal[mm]	internal creepage distance [mm]	internal air distance [mm]	external creepage distance [mm]	external air distance [mm]	Maximum torque on insert threads [Nm]
500	14	37x37	38	36	60	41	60

return

Contact form

Individual person

Company

First name and last name

COMPANY NAME

NIP [tax identification number]

Country

POST CODE

City

STREET AND HOME NUMBER

Phone

e-mail

MESSAGE

Please send me the information bulletin

I consent to the processing of my personal data in accordance with the Act on Personal Data Protection and Regulation 2016/679. The provision of data is voluntary but necessary for processing the request. I have been informed that I have the right to access my data, to rectify them, and to demand that their processing be discontinued. Continental Trade is acting as the data controller. More information about personal data protection can be found in privacy policy. By clicking SEND you accept all the above conditions

Series 3

max current [A] breakdown voltage [kV] hexagonal[mm] internal creepage distance [mm] internal air distance [mm] external creepage distance [mm] external air distance [mm] Maximum torque on insert threads [Nm] 400 14 30x30 95 46 91 45 60 code description material finishing indoor/outdoor current [A] weight files 312108303 Isol.pass.3FF-M10/153 E-Cu Copper M-M Outdoor 400 320 download 312113303 Isol.pass.3FF-M12/134 E-Cu Copper M-M Outdoor 400 290 download 312101601 Isol.pass.3FF-M12/148 B-Cu Copper M-M Indoor 400 291 download 312101601s Isol.pass.3FF-M12/148 B-Cu Copper M-M Indoor 400 291 download 312101603 Isol.pass.3FF-M12/148 E-Cu Copper M-M Outdoor 400 292 download 312101603s Isol.pass.3FF-M12/148 E-Cu Copper M-M Outdoor 400 292 download 312104703 Isol.pass.3HH-M8/084 E-Cu Copper F-F Outdoor 400 240 download 312101060 Isol.pass.3HH-M8/084 E-Ot Brass F-F Outdoor 250 240 download 312107913 Isol.pass.3HS-M10-9/111 E-Cu Copper Female-Flat terminal Outdoor 400 280 download 312107203 Isol.pass.3HS-M8-7/121 E-Cu Copper Female-Flat terminal Outdoor 400 290 download 312124803 Isol.pass.3HS-M8-9/104 E-Cu Copper Female-Flat terminal Outdoor 400 250 download 312107903 Isol.pass.3HS-M8-9/111 E-Cu Copper Female-Flat terminal Outdoor 400 280 download 312107913 Isol.pass.3SH-M10-9/111 E-Cu Copper Flat terminal-Female Outdoor 400 280 download 312910006 Isol.pass.3SS-9/138 E-Cu Copper Flat terminal-Flat terminal Outdoor 400 220 download

Series 3A

code description material finishing indoor/outdoor current [A] weight files 312123803 Isol.pass.3AHS-M8-7/140 E-Cu Copper Female-Flat terminal Outdoor 400 290 download 312124703 Isol.pass.3AHS-M8-9/123 E-Cu Copper Female-Flat terminal Outdoor 400 290 download max current [A] breakdown voltage [kV] hexagonal[mm] internal creepage distance [mm] internal air distance [mm] external creepage distance [mm] external air distance [mm] Maximum torque on insert threads [Nm] 400 14 30x30 95 46 117 56 60

Series 4

max current [A] breakdown voltage [kV] hexagonal[mm] hexagonal[mm] hexagonal[mm] external creepage distance [mm] external air distance [mm] Maximum torque on insert threads [Nm] 800 14 50x50 80 48 114 60 50 code description material finishing indoor/outdoor current [A] weight files 312106101 Isol.pass.4HH-M 8/096 B-Cu Copper F-F Outdoor 800 635 download 312112701 Isol.pass.4HH-M 10/096 B-Cu Copper F-F Indoor 800 635 download 312112711 Isol.pass.4HH-M 12/096 B-Cu Copper F-F Indoor 800 635 download 312122400 Isol.pass.4HH-M 12-16/112 B-Cu Copper F-F Indoor 800 650 download 312109301 Isol.pass.4HH-M14/096 B-Cu Copper F-F Indoor 800 625 download 312122900 Isol.pass.4HH-M16/166 B-Cu Copper F-F Indoor 800 950 download 312122800 Isol.pass.4HS-M12/141 B-Cu Copper Female-Flat terminal Outdoor 800 815 download 312101300 Isol.pass.4SH-11M12/130 B-Cu Copper Flat terminal-Female Indoor 800 710 download 312101300s Isol.pass.4SH-11M12/130 B-Cu Copper Flat terminal-Female Indoor 800 710 download 312125200 Isol.pass.4SH-13M12/135 B-Cu Copper Flat terminal-Female Indoor 800 710 download 312008100 Isol.pass.4SS-11/170 B-Cu Copper Flat terminal-Flat terminal Indoor 800 840 download 312008103 Isol.pass.4SS-11/170 E-Cu Copper Flat terminal-Flat terminal Outdoor 800 840 download 312119300 Isol.pass.4SS-11/170-Fori 13 B-Cu Copper Flat terminal-Flat terminal Outdoor 800 840 download 312008403 Isol.pass.4SS-11/180 E-Cu Copper Flat terminal-Flat terminal Outdoor 800 840 download 312008300 Isol.pass.4SS-11/235 B-Cu Copper Flat terminal-Flat terminal Indoor 800 1140 download 312008200 Isol.pass.4SS-11/240 B-Cu Copper Flat terminal-Flat terminal Indoor 800 1140 download 312008203 Isol.pass.4SS-11/240 E-Cu Copper Flat terminal-Flat terminal Outdoor 800 1170 download 312123600 Isol.pass.4SS-11/240-4fori Φ11 B-Cu Copper Flat terminal-Flat terminal Indoor 800 1170 download
