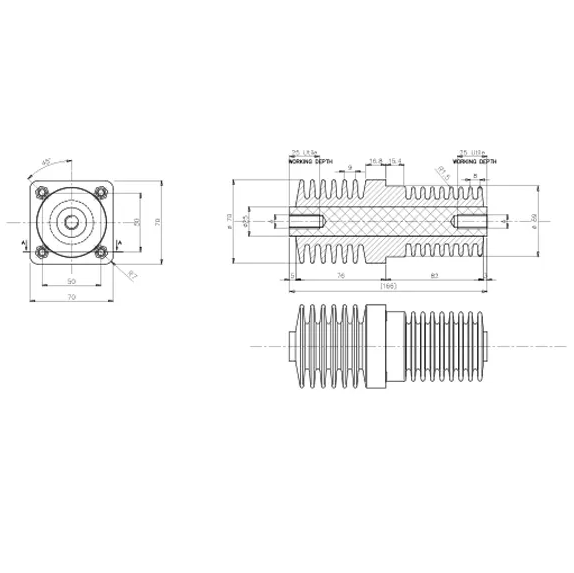

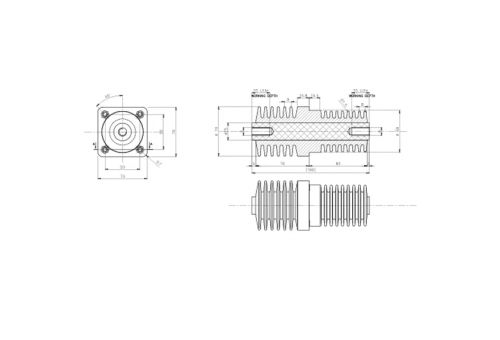

Series 6

Inquire about a product

Product description Technical data Video

products

code	description	material	finishing	indoor/outdoor	current [A]	weight	files
312127500	Isol.pass.6SH-M10-10/202 E- Cu	Copper	Flat terminal-F	Outdoor	800	1350	download
312109001	Isol.pass.6SS-12-14/252 B-Cu	Copper	Flat terminal-Flat terminal	Indoor	800	1450	download
312109011	Isol.pass.6SS-12-14/252 B-Ot	Brass	Flat terminal-Flat terminal	Indoor	400	1500	download
312115401	Isol.pass.6SS-12-14/252 Ortogonale B-Cu	Copper	Flat terminal-Flat terminal	Indoor	800	1450	download
312110614	Isol.pass.6SS-M10/166 E- Ot	Brass	Flat terminal-Flat terminal	Outdoor	400	1450	download
312110613	Isol.pass.6SS-M12/166 E- Ot	Brass	Flat terminal-Flat terminal	Outdoor	400	1450	download
312110603	Isol.pass.6SS-M12/166 E-Cu	Copper	Flat terminal-Flat terminal	Outdoor	800	1450	download

max current [A]	breakdown voltage [kV]	hexagonal[mm]	internal creepage distance [mm]	internal air distance [mm]	external creepage distance [mm]	external air distance [mm]	Maximum torque on insert threads [Nm]
800	14	50x50	231	231	251	93	50

return

Contact form

Individual person

Company

First name and last name

COMPANY NAME

NIP [tax identification number]

Country

POST CODE

City

STREET AND HOME NUMBER

Phone

e-mail

MESSAGE

Please send me the information bulletin

I consent to the processing of my personal data in accordance with the Act on Personal Data Protection and Regulation 2016/679. The provision of data is voluntary but necessary for processing the request. I have been informed that I have the right to access my data, to rectify them, and to demand that their processing be discontinued. Continental Trade is acting as the data controller. More information about personal data protection can be found in privacy policy. By clicking SEND you accept all the above conditions

Series 4

max current [A] breakdown voltage [kV] hexagonal[mm] hexagonal[mm] hexagonal[mm] external creepage distance [mm] external air distance [mm] Maximum torque on insert threads [Nm] 800 14 50x50 80 48 114 60 50 code description material finishing indoor/outdoor current [A] weight files 312106101 Isol.pass.4HH-M 8/096 B-Cu Copper F-F Outdoor 800 635 download 312112701 Isol.pass.4HH-M 10/096 B-Cu Copper F-F Indoor 800 635 download 312112711 Isol.pass.4HH-M 12/096 B-Cu Copper F-F Indoor 800 635 download 312122400 Isol.pass.4HH-M 12-16/112 B-Cu Copper F-F Indoor 800 650 download 312109301 Isol.pass.4HH-M14/096 B-Cu Copper F-F Indoor 800 625 download 312122900 Isol.pass.4HH-M16/166 B-Cu Copper F-F Indoor 800 950 download 312122800 Isol.pass.4HS-M12/141 B-Cu Copper Female-Flat terminal Outdoor 800 815 download 312101300 Isol.pass.4SH-11M12/130 B-Cu Copper Flat terminal-Female Indoor 800 710 download 312101300s Isol.pass.4SH-11M12/130 B-Cu Copper Flat terminal-Female Indoor 800 710 download 312125200 Isol.pass.4SH-13M12/135 B-Cu Copper Flat terminal-Female Indoor 800 710 download 312008100 Isol.pass.4SS-11/170 B-Cu Copper Flat terminal-Flat terminal Indoor 800 840 download 312008103 Isol.pass.4SS-11/170 E-Cu Copper Flat terminal-Flat terminal Outdoor 800 840 download 312119300 Isol.pass.4SS-11/170-Fori 13 B-Cu Copper Flat terminal-Flat terminal Outdoor 800 840 download 312008403 Isol.pass.4SS-11/180 E-Cu Copper Flat terminal-Flat terminal Outdoor 800 840 download 312008300 Isol.pass.4SS-11/235 B-Cu Copper Flat terminal-Flat terminal Indoor 800 1140 download 312008200 Isol.pass.4SS-11/240 B-Cu Copper Flat terminal-Flat terminal Indoor 800 1140 download 312008203 Isol.pass.4SS-11/240 E-Cu Copper Flat terminal-Flat terminal Outdoor 800 1170 download 312123600 Isol.pass.4SS-11/240-4fori Φ11 B-Cu Copper Flat terminal-Flat terminal Indoor 800 1170 download

Series 5

max current [A] breakdown voltage [kV] hexagonal[mm] internal creepage distance [mm] internal air distance [mm] external creepage distance [mm] external air distance [mm] Maximum torque on insert threads [Nm] 1000 14 61x61 77 41 142 70 50 code description material finishing indoor/outdoor current [A] weight files 312900403 Isol.pass.5HH-M10/096 E-Cu Copper F-F Outdoor 1000 1470 download 312900200 Isol.pass.5HH-M12/096 B-Cu Copper F-F Indoor 1000 1125 download 312900203 Isol.pass.5HH-M12/096 E-Cu Copper F-F Outdoor 1000 1470 download 312900300 Isol.pass.5HH-M16/096 B-Cu Copper F-F Indoor 1000 1125 download 312008803 Isol.pass.5SS-13/179 E-Cu Copper Flat terminal-Flat terminal Outdoor 1000 1470 download 312008600 Isol.pass.5SS-13-14/164 B-Cu Copper Flat terminal-Flat terminal Indoor 1000 1470 download 312008603 Isol.pass.5SS-13-14/164 E-Cu Copper Flat terminal-Flat terminal Outdoor 1000 1470 download 312114600 Isol.pass.5SS-14/186 B-Cu Copper Flat terminal-Flat terminal Indoor 1000 2110 download 312910003 Isol.pass.5SS-14/186 E-Cu Copper Flat terminal-Flat terminal Outdoor 1000 1800 download

Series 7

max current [A] breakdown voltage [kV] hexagonal[mm] internal creepage distance [mm] internal air distance [mm] external creepage distance [mm] external air distance [mm] 3600 18 155x155 200 200 380 90,00 code description material finishing indoor/outdoor current [A] weight files 312119200 Isol.pass.7SS-13/500 E-Cu Copper Flat terminal-Flat terminal Outdoor 800 13200 download
